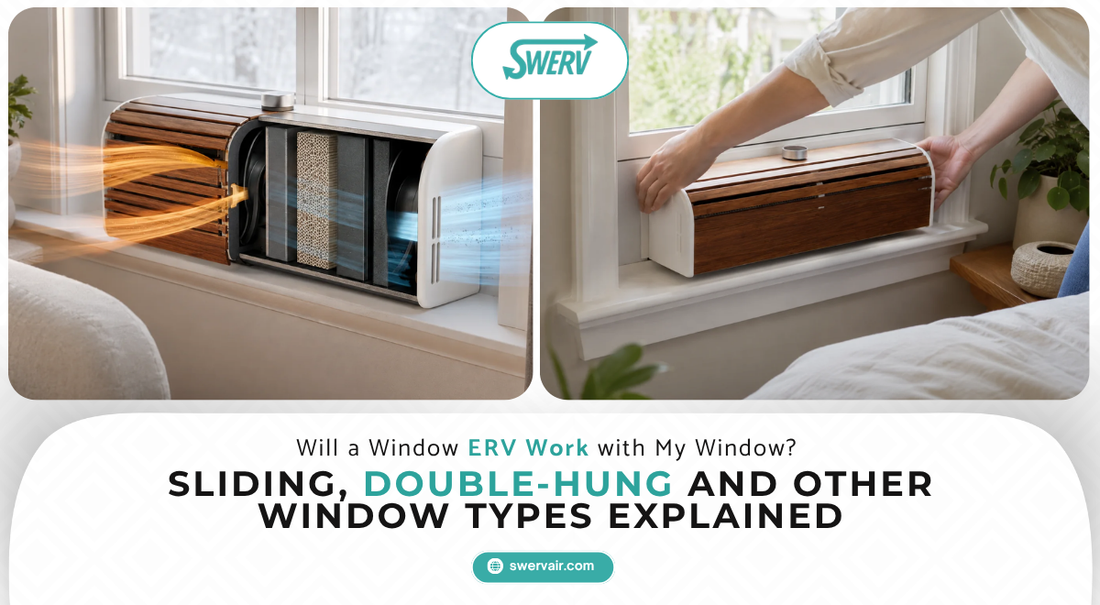

Will a Window ERV Work with My Window? Sliding, Double-Hung and Other Window Types Explained

Yes, a window ERV will work perfectly with your window if you have a standard single-hung, double-hung, or horizontal sliding frame. These windows open in a straight line and create a clean, square gap for the unit to sit inside safely. If you have a casement or awning window that cranks outward on a hinge, a standard window ERV will not fit properly.

You cannot just buy a ventilation unit and hope it slides right in. Finding the right fit depends on your window's opening direction, track width, and the surrounding clearance. Buying the wrong unit for your frame will leave you with a massive headache and an open window you cannot seal.

Before you spend any money, you need to understand exactly how your specific window operates. This guide will show you exactly how to check your frame, measure your opening, and ensure a tight, secure fit.

What Is a Window ERV?

An ERV stands for Energy Recovery Ventilator. It is a smart window ventilation system that pulls fresh outside air into your room while pushing stale, polluted indoor air outside. Unlike a standard box fan, an ERV actually transfers heat and moisture between the two air streams.

During the winter, it uses the warm indoor air leaving your house to heat up the freezing cold air coming inside. During the summer, it does the exact opposite to keep your air conditioning inside.

According to the Environmental Protection Agency (EPA), indoor air can be two to five times more polluted than outside air. A dedicated window ventilation system fixes this problem immediately. It removes high carbon dioxide, cooking odors, and chemical off-gassing from your furniture.

Which Window Types May Support a Window ERV?

The physical design of your window frame dictates whether a unit will fit. You have to look at how the glass moves inside the frame. Here is exactly how standard window types handle ERV units.

Double-Hung Windows

A double-hung window has two separate glass panels, called sashes, that both move up and down. This is the absolute best option for ventilation units. You simply slide the bottom sash up, place the unit on the windowsill, and close the sash tightly down on top of it.

Finding an ERV double-hung window setup is very easy because this is the standard American window design. The unit sits horizontally and balances perfectly on the flat bottom sill.

Single-Hung Windows

A single-hung window looks exactly like a double-hung window, but only the bottom half moves. The top half is permanently fixed in place. These work just as well as double-hung frames. You raise the bottom sash, drop the unit in, and lock it down.

Horizontal Sliding Windows

Horizontal sliders move left and right instead of up and down. You can easily find a great ERV for sliding window frames, but the installation looks slightly different. Instead of sitting flat on its belly, the unit usually sits vertically inside the window track.

When setting up an ERV for sliding window tracks, you slide the glass open to the side. You place the unit upright, and slide the glass back until it hits the machine. You will usually need to use filler panels to block the tall gap above the unit.

Casement Windows

Casement windows operate on a side hinge and crank outward like a door. These are almost always incompatible with window ERVs.

When the glass swings outward, it blocks the outside airflow. You also cannot close a casement window tightly against a square unit. Doing so leaves massive open gaps where bugs and rain will easily get inside your house.

Awning Windows

Awning windows are hinged at the top and crank outward from the bottom. Just like casement windows, these do not work with standard ERVs. The angled glass blocks the exhaust vents. There is also no flat track to secure the unit safely.

Quick Tip: If your window cranks open with a handle, an ERV is likely not going to work without highly custom, expensive modifications.

Window ERV Compatibility Comparison

Use this quick chart to see where your window stands.

Window Type	Potential Compatibility	Key Consideration
Double-Hung	High	Verify the maximum window width matches the unit panels.
Single-Hung	High	Check that the bottom sash opens high enough for the unit.
Horizontal Sliding	High	Requires a vertical installation bracket and tall filler panels.
Casement	Low	The outward swinging glass blocks the system.
Awning	Low	No flat track to secure the unit safely against the weather.



How to Measure Your Window for an ERV

Guessing your window size will result in a frustrating return process. You need a standard tape measure and five minutes to get the exact numbers. Proper window ERV installation requires tight tolerances.

Follow these exact steps to measure your frame:

1. Measure the Opening Width: Open your window completely. Measure the distance from the inside of the left frame track to the inside of the right frame track. Do not measure the glass itself.
2. Measure the Opening Height: Keep the window fully open. Measure from the flat bottom sill straight up to the bottom edge of the raised window sash.
3. Check the Track Depth: Measure how wide the actual groove is where the window slides. Your ERV needs to sit securely inside this track to prevent it from falling outward.
4. Locate the Nearest Outlet: Use your tape measure to check the distance from the window to the nearest standard 120V electrical outlet.

Did you know? The Department of Energy notes that poor window sealing during installation ruins the energy-saving benefits of any ventilation system. Always measure twice to ensure a tight seal.

What Clearance Does a Window ERV Need?

Your unit needs physical space to breathe. You cannot push a couch directly against the indoor vents, or the machine will choke.

On the inside of your room, you need at least 12 inches of completely clear space in front of the unit. This allows the fresh air to actually circulate into your living space.

On the outside, you need to check for thick bushes, window screens, or storm shutters. The exhaust vent pushes stale air out. If a dense bush is sitting two inches from your window, the stale air will bounce right back inside. Always remove the standard bug screen from your window track before installing the unit.

Does Installation Require Permanent Modifications?

Standard window ERV installation does not require you to destroy your window frame. You do not have to drill heavy bolts into your drywall or cut your window glass.

The units secure themselves using the pressure of your closing window sash. Most systems come with adjustable side panels that slide out to meet your window frame. You secure these panels using basic weather stripping and small, removable set screws that go into the provided side panels, not your expensive window frame.

Can Renters Install a Window ERV?

Yes, renters can easily install these systems. Because the setup does not require cutting holes in the exterior walls, you will not violate your lease agreement.

When you decide to move to a new apartment, you simply open the window, lift the unit out, and take it with you. It is just as easy as installing or removing a basic window air conditioner. Always double-check with your landlord if you live in a strict high-rise building, as they sometimes have rules about items hanging out of windows.

Window ERV Compatibility Checklist

Before you add a unit to your cart, run through this final checklist. If you can check every box, your window is ready for fresh air.

• Window Direction: The window slides up and down, or left and right on a straight track.
• Size Limits: Your open window dimensions fall within the manufacturer's listed minimum and maximum requirements.
• Frame Strength: Your window sill is flat, sturdy, and free of serious wood rot.
• Power Access: There is a standard three-prong electrical outlet within reach of the unit's power cord.
• Weather Sealing: You have enough foam weather stripping to plug small gaps around the side panels.

Proper window ERV compatibility comes down to matching the machine to the opening perfectly. When you get the right fit, you will enjoy a massive upgrade in your daily air quality.

Upgrade Your Air Today with SwervAir

Breathing stale, stuffy air inside your own home is miserable. You deserve a fresh, clean environment where you sleep and work. At SwervAir, we build smart ventilation solutions designed to fit seamlessly into your life.

We take the stress out of window ERV compatibility. Our systems are engineered to slide perfectly into standard hung and sliding windows with minimal effort. You do not need to hire an expensive contractor to cut holes in your walls.

If you are ready to stop breathing trapped indoor pollution, we are here to help. Explore our full lineup of advanced window ventilation systems at SwervAir today and take your first deep breath of truly fresh air.

Frequently Asked Questions

Here are the most common questions people ask about putting ERV systems in their windows.

Can I install a window ERV if I have security bars on my window?

Yes, as long as the security bars do not physically block the outside vents of the ERV unit. Measure the distance between your window glass and the security bars to ensure the unit's exterior profile fits safely.

Do I need a dedicated electrical circuit to run a window ERV?

No. Window ERVs draw very little power compared to an air conditioner. You can safely plug them into a standard 120V wall outlet that you already use for lamps or phone chargers.

Will setting up an ERV double-hung window system let bugs inside?

No, a proper setup will not let bugs inside. ERV units have their own internal mesh filters to block insects. You just need to ensure you use foam weather stripping to seal any gaps between the unit and your window frame.

Is an ERV noisy when installed in a bedroom window?

Most high-quality ERVs run very quietly on their low and medium settings. They produce a soft white noise similar to a modern desk fan, making them perfectly fine for sleeping environments.

What happens to a window ERV during a heavy rainstorm?

The exterior vents on the unit point downward to prevent water from getting inside the machine. As long as you installed the unit securely and used proper weather stripping around the edges, rain will simply run off the outside housing.
